Electric Flat Panel Transport Vehicle
Application:Steel Industry, Factory, Warehouse, Port
Brand:Perfect
Load Capacity:1-300 Ton
Special Function:Anti-Explosion, Heat-Resistant, Lifting
Control Mode:Pendant/Remote/PLC Control
Power Mode:Battery/cable powered/rail powered....
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp.
Specification:Customized
Siųsti užklausą
Product Details ofElectric Flat Panel Transport Vehicle

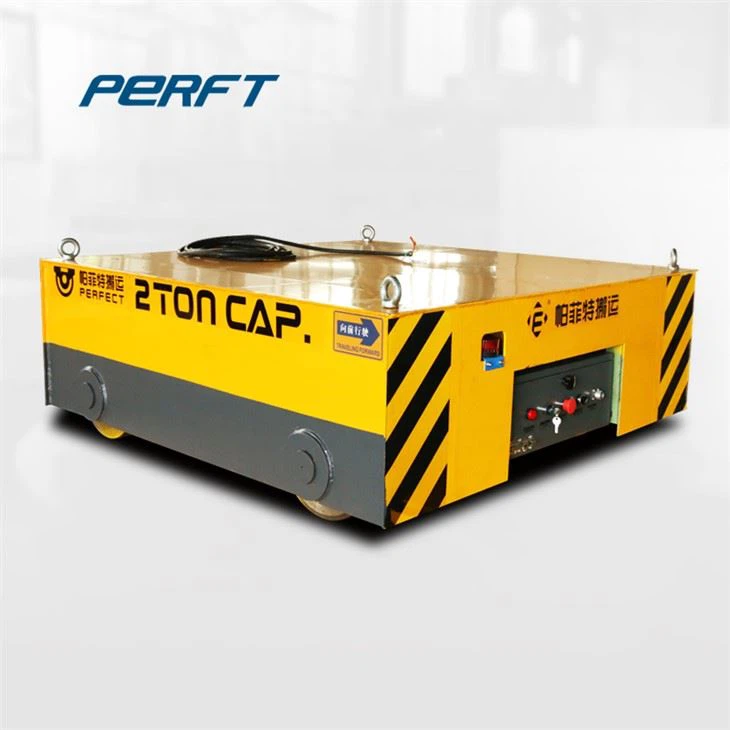

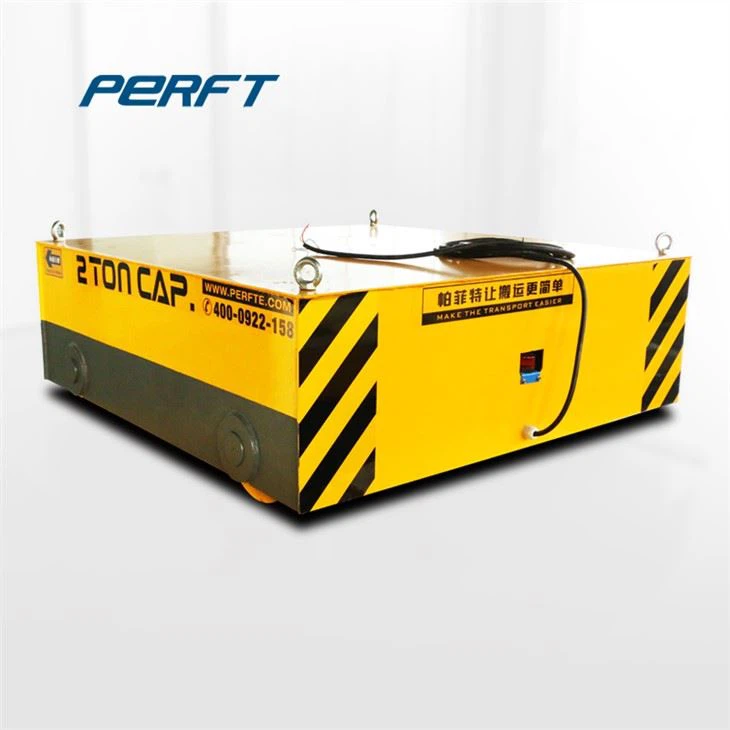

Electric Flat Panel Transport Vehicle
Electric Flat Panel Transport Vehicle is a material handling equipment used to transport heavy goods. Flat-panel transporters operated by railways can choose battery power supply, low-voltage rail power supply, cable drum power supply, trailing cable power supply, etc. Depending on your actual site conditions, you can choose either a flat car with tracks for transportation or a flat car without tracks for material transportation. The front and rear transporters have pushing and pulling devices. Two or more electric flat-panel transmission vehicles can be connected in large numbers to improve efficiency.
Transfer trolley prices are influenced by many factors, such as ton lift, trolley size, manufacturer, distance travelled, and working conditions.
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
